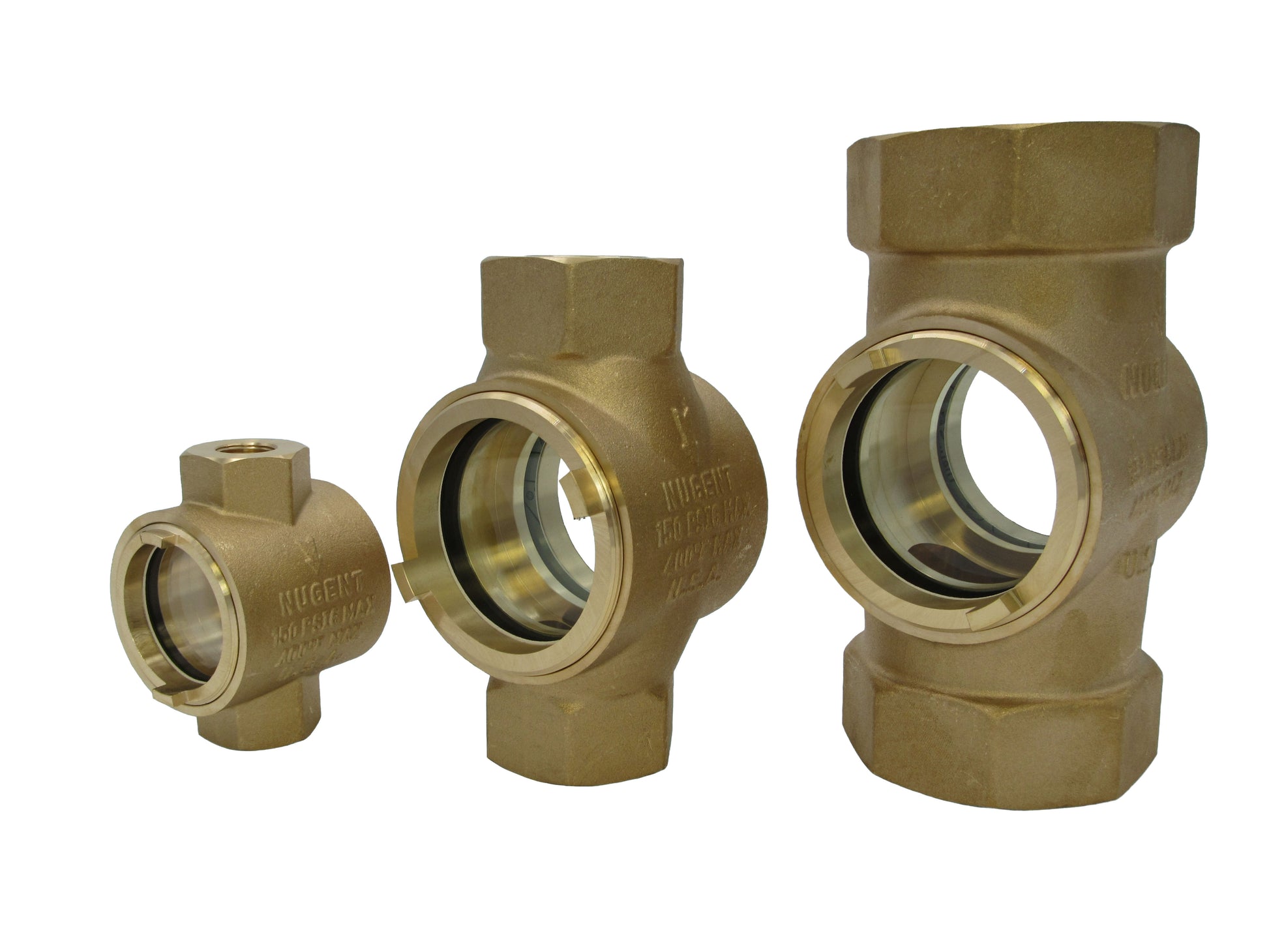

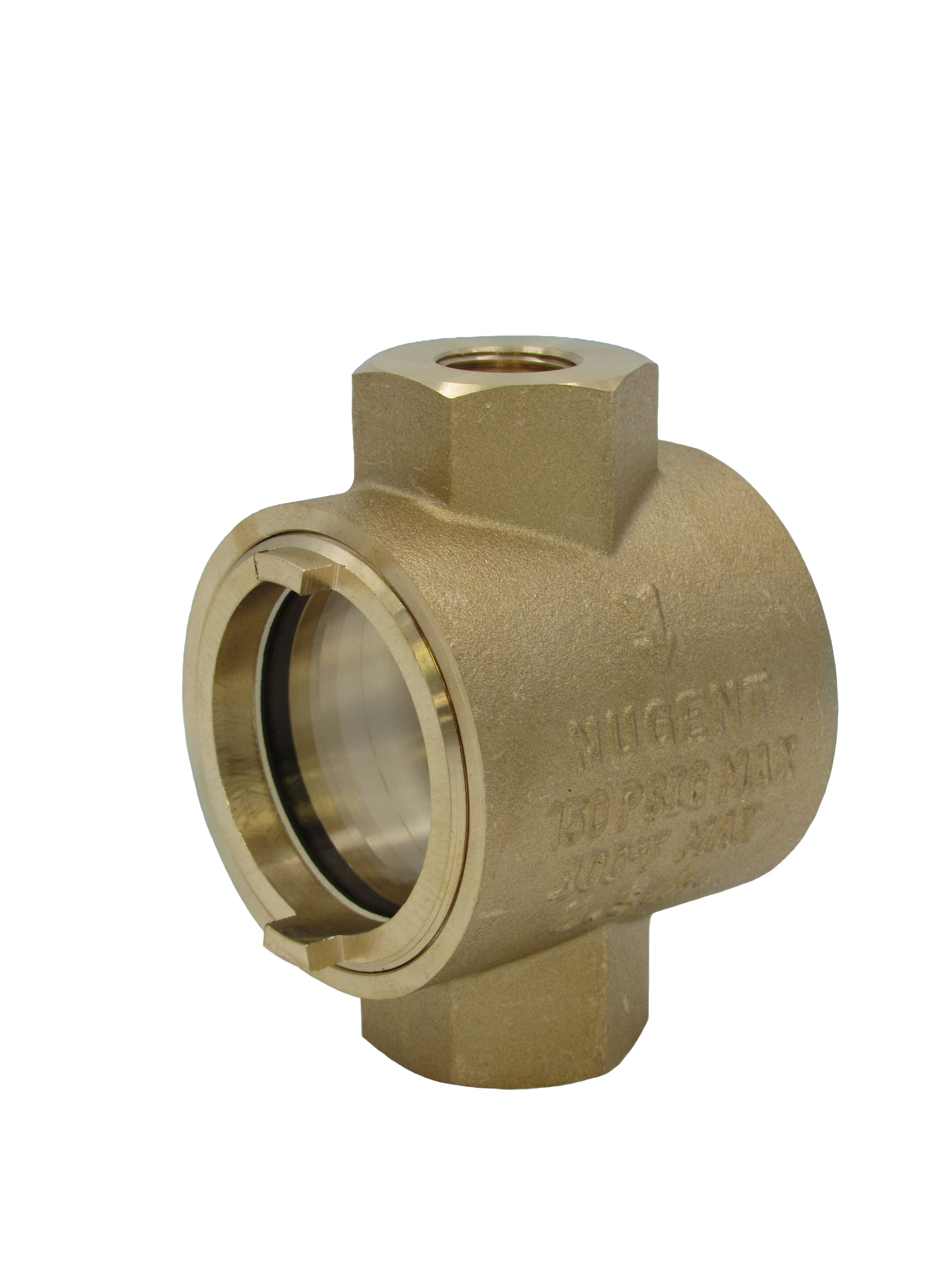

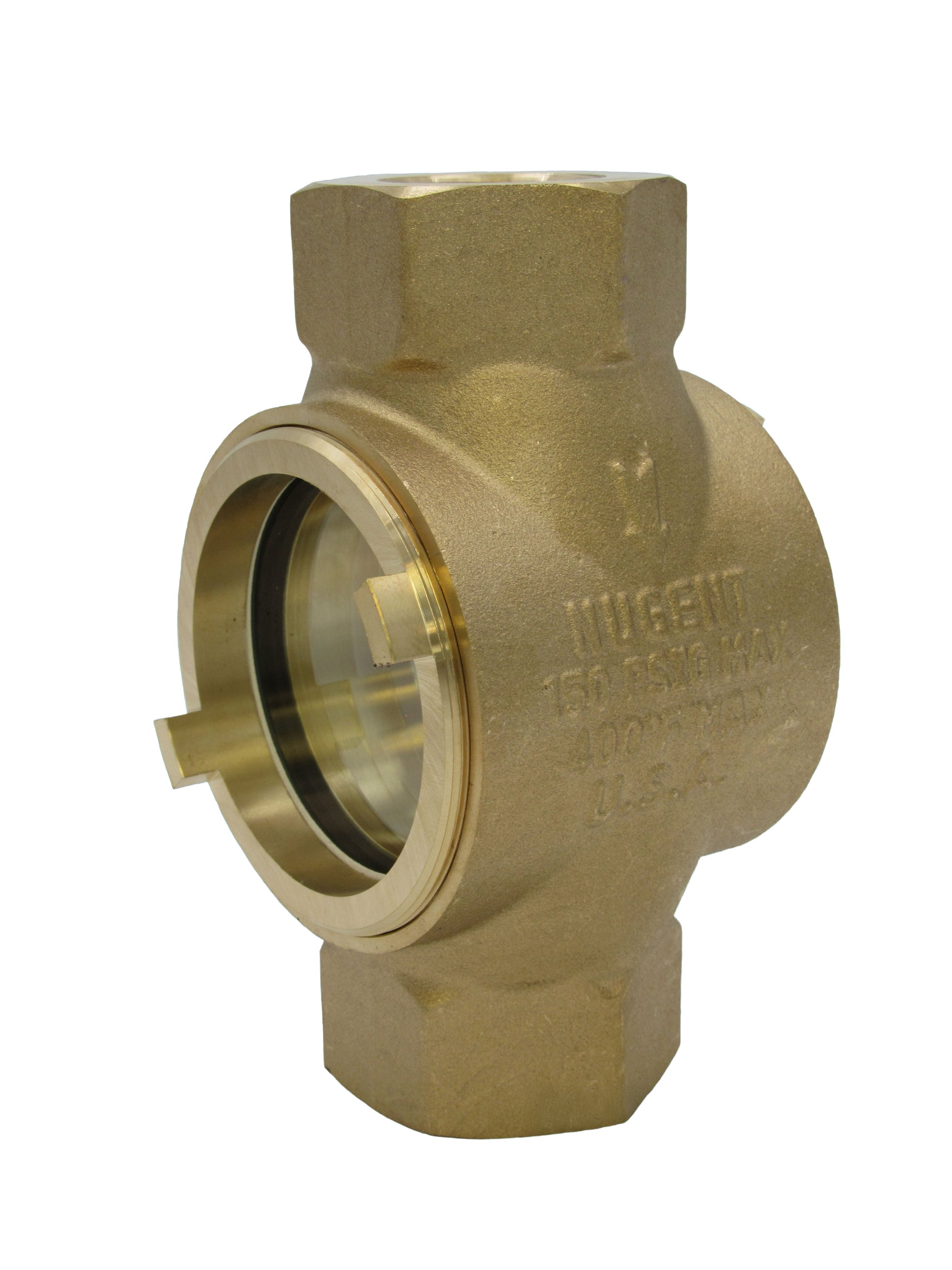

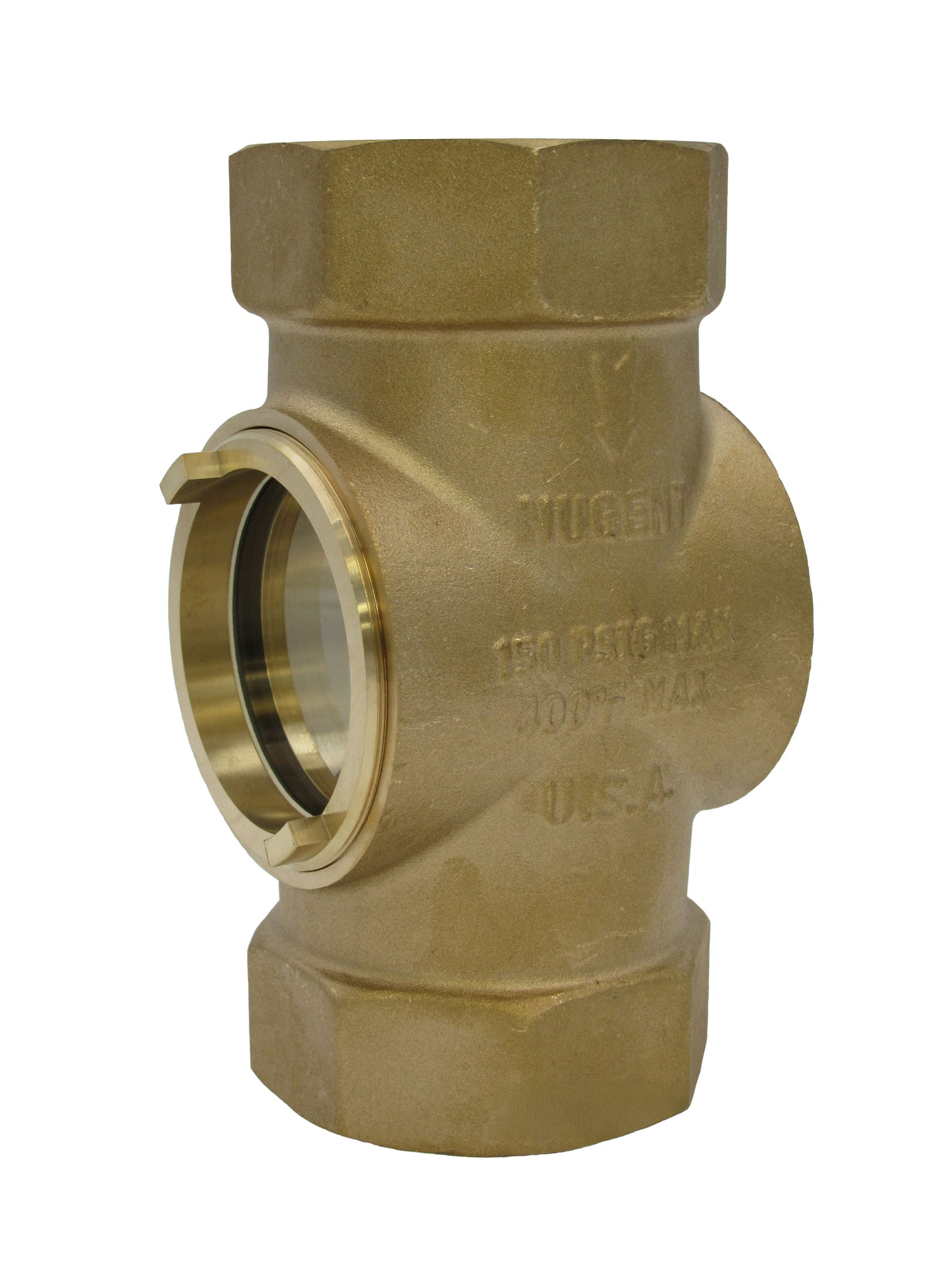

Nugent Liquid Sight Flow Indicators permit observation of flow and clarity of liquid through a pipe. Windows are both sides allow easy viewing. Two styles are available: Series 1366E and Series 1366G. 1366E has a stainless-steel spring-loaded indicator vane that moves in proportion to the flow. This style is especially suited for observing variations in flow rates. 1366G is supplied without the indicator vane. Available in brass and in sized from 3/8" to 2" NPT.

Without Indicators

Without Indicators

Nugent Liquid Sight Flow Indicators permit observation of flow and clarity of liquid through a pipe. Windows are both sides allow easy viewing. Two styles are available: Series 1366E and Series 1366G. 1366E has a stainless-steel spring-loaded indicator vane that moves in proportion to the flow. This style is especially suited for observing variations in flow rates. 1366G is supplied without the indicator vane. Available in brass and in sized from 3/8" to 2" NPT.

View full details
image-2 57-103-208
Without Indicators
PRICE $136.46
image-2 57-103-217
Without Indicators
PRICE $136.46
image-2 57-104-208
Without Indicators
PRICE $153.44
image-2 57-105-208
Without Indicators
PRICE $268.68
image-2 57-105-217
Without Indicators
PRICE $268.68
image-2 57-106-208
Without Indicators
PRICE $277.11
image-2 57-107-208
Without Indicators
PRICE $267.05
Your cart
Part # Size Description MATERIAL Price LEAD TIME Weight Pdf Add to cart
57-103-208 3/8" NPT MAX 400 ºF. | 150 PSIG BRASS $136.46 Stock 2 LBS Download
57-103-217 1/2" NPT MAX 400 ºF. | 150 PSIG BRASS $136.46 Stock 2 LBS Download
57-104-208 3/4" NPT MAX 400 ºF. | 150 PSIG BRASS $153.44 Stock 2 LBS Download
57-105-208 1" NPT MAX 400 ºF. | 150 PSIG BRASS $268.68 Stock 4.5 LBS Download
57-105-217 1-1/4" NPT MAX 400 ºF. | 150 PSIG BRASS $268.68 Stock 4.5 LBS Download
57-106-208 1-1/2" NPT MAX 400 ºF. | 150 PSIG BRASS $277.11 Stock 6 LBS Download
57-107-208 2" NPT MAX 400 ºF. | 150 PSIG BRASS $267.05 Stock 10 LBS Download
