Cellulose Elements

These superior resin impregnated elements offer economy and versatility where ½, 3, 5, 10 and 25 micron filtration is required. Their outstanding flow characteristics, even at higher viscosities, result in more compact housings for initial cost savings. Our Cellulose elements meet API specifications to satisfy original equipment manufacturers and the petroleum industry.

Some of these products features Nugent's advanced electrocoating technology

Nugent's advanced electrocoating technology is a process that uses electrical current to apply a uniform, corrosion-resistant coating for maximum performance and longevity.

Learn more

Cellulose Elements

Cellulose Elements

These superior resin impregnated elements offer economy and versatility where ½, 3, 5, 10 and 25 micron filtration is required. Their outstanding flow characteristics, even at higher viscosities, result in more compact housings for initial cost savings. Our Cellulose elements meet API specifications to satisfy original equipment manufacturers and the petroleum industry.

Some of these products features Nugent's advanced electrocoating technology

Nugent's advanced electrocoating technology is a process that uses electrical current to apply a uniform, corrosion-resistant coating for maximum performance and longevity.

Learn more
View full details
01-388-004 01-094-001
Cellulose Elements
PRICE $141.49
01-388-004 01-094-002
Cellulose Elements
PRICE $142.80
01-388-004 01-094-003
Cellulose Elements
PRICE $147.53
01-388-004 01-094-005
Cellulose Elements
PRICE $179.16
01-388-004 01-094-006
Cellulose Elements
PRICE $182.74
Cellulose Elements 01-094-039
Cellulose Elements
PRICE $107.67
Cellulose Elements 01-102-001
Cellulose Elements
PRICE $81.73
01-388-004 01-102-003
Cellulose Elements
PRICE $127.68
Cellulose Elements 01-102-013
Cellulose Elements
PRICE $77.29
Cellulose Elements 01-102-014
Cellulose Elements
PRICE $124.45
Reach out to sales@wwnugent.com for a quote
Cellulose Elements 01-102-015
Cellulose Elements
PRICE $151.43
Cellulose Elements 01-114-002
Cellulose Elements
PRICE $82.17
01-253-002_937fe778 01-114-007
Cellulose Elements
PRICE $124.45
01-253-002_937fe778 01-253-002
Cellulose Elements
PRICE $81.31
01-388-004 01-253-006
Cellulose Elements
PRICE $114.96
01-388-004 01-388-001
Cellulose Elements
PRICE $52.00
Reach out to sales@wwnugent.com for a quote
Cellulose Elements 01-388-002
Cellulose Elements
PRICE $46.73
Cellulose Elements 01-388-003
Cellulose Elements
PRICE $61.28
Cellulose Elements 01-388-004
Cellulose Elements
PRICE $61.43
Cellulose Elements 01-388-005
Cellulose Elements
PRICE $61.43
Reach out to sales@wwnugent.com for a quote
Cellulose Elements 01-388-006
Cellulose Elements
PRICE $46.73
Reach out to sales@wwnugent.com for a quote
Cellulose Elements 01-388-007
Cellulose Elements
PRICE $46.73
01-388-004 01-388-008
Cellulose Elements
PRICE $52.01
01-388-004 01-388-009
Cellulose Elements
PRICE $77.11
Cellulose Elements 01-725-001
Cellulose Elements
PRICE $55.14
Cellulose Elements 01-725-002
Cellulose Elements
PRICE $76.10
Part # Model MEDIA EFFICIENCY Flow Path Price Weight LEAD TIME E-Coated Pdf Add to cart
01-094-001 BR Cellulose 5 μm Nominal OUTSIDE - IN $141.49 5.5 LBS Stock No XXXX
01-094-002 BR1 Cellulose 5 μm Nominal OUTSIDE - IN $142.80 5.5 LBS Stock No Download
01-094-003 BRV Cellulose 5 μm Nominal OUTSIDE - IN $147.53 5.5 LBS Stock No Download
01-094-005 BRB Cellulose 3 μm @ B3 = 75 OUTSIDE - IN $179.16 6 LBS Stock No Download
01-094-006 BRE Cellulose 3 μm @ B3 = 75 OUTSIDE - IN $182.74 6 LBS Stock No Download
01-094-039 Z50 Cellulose 50 μm INSIDE - OUT $107.67 4 LBS Stock No Download
01-102-001 BP Cellulose 5 μm Nominal OUTSIDE - IN $81.73 4 LBS Stock Yes Download
01-102-003 CC Cellulose 5 μm Nominal OUTSIDE - IN $127.68 4 LBS Stock No Download

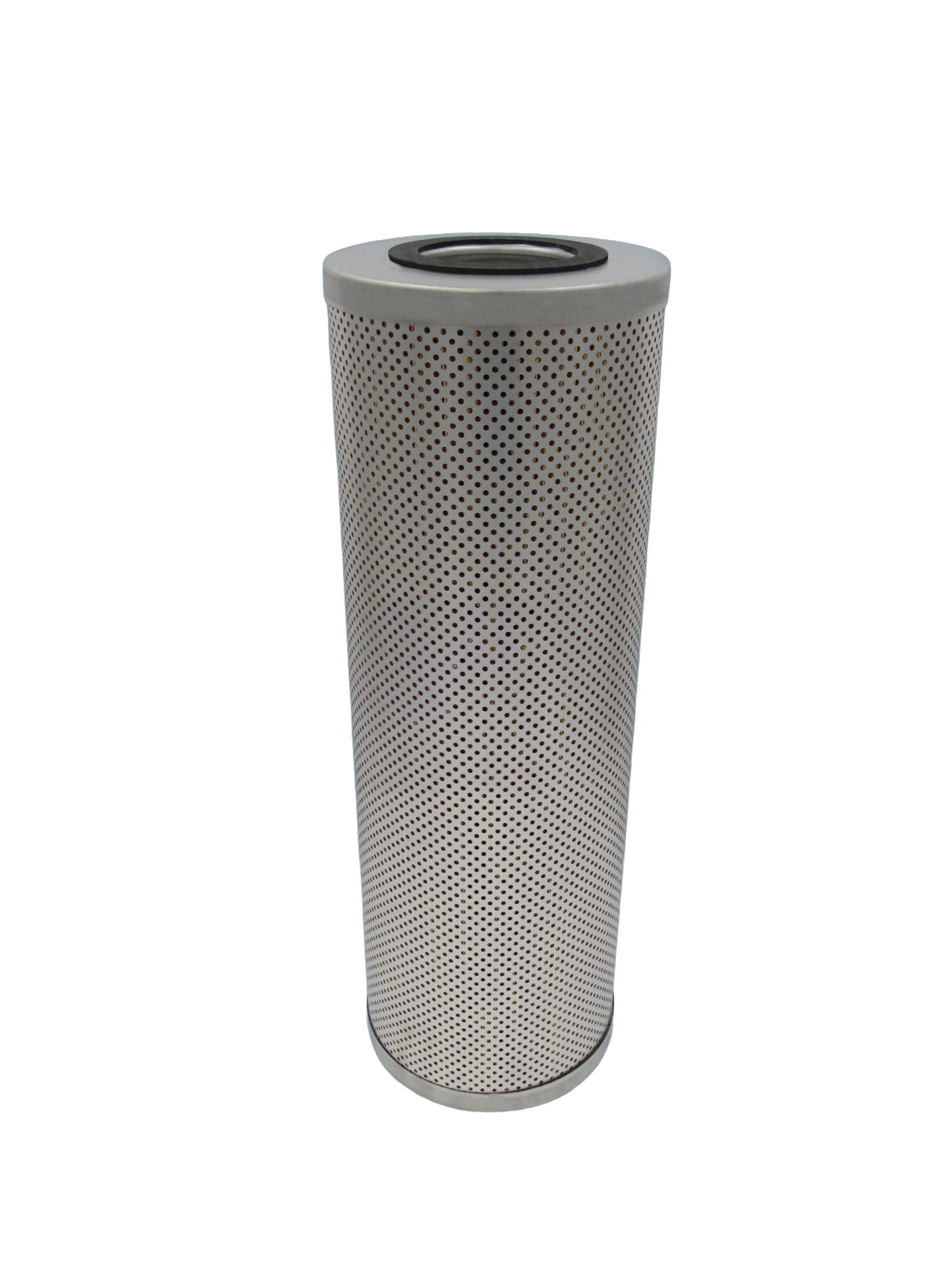

01-102-013 (REPLACES 30-400-201) CCN Cellulose 5 µm Nominal OUTSIDE - IN $77.29 4 LBS Stock Yes Download
01-102-014 (REPLACES 30-400-202) CCP Cellulose 5 μm Nominal OUTSIDE - IN Reach out to Nugent Sales 6 LBS Stock Yes Download
Reach out to sales@wwnugent.com for a quote

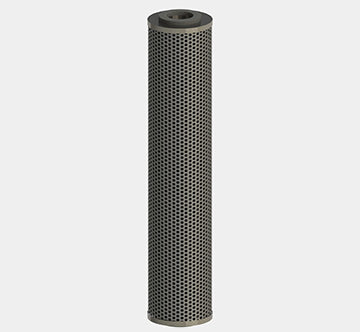

01-102-015 (REPLACES 30-400-203) CCR Cellulose 5 µm Nominal OUTSIDE - IN $151.43 10 LBS Stock Yes Download
01-114-002 GH Cellulose 5 μm Nominal OUTSIDE - IN $82.17 4 LBS Stock No Download
01-114-007 CCL Cellulose 5 μm Nominal OUTSIDE - IN $124.45 8 LBS Stock No Download

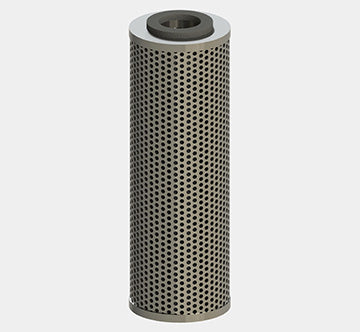

01-253-002 TFE Cellulose 10 μm Nominal OUTSIDE - IN $81.31 4 LBS Stock Yes Download
01-253-006 TFEN Cellulose 10 μm Nominal OUTSIDE - IN $114.96 8 LBS Stock No Download
01-388-001 LD10 Cellulose 10 μm Nominal OUTSIDE - IN Reach out to Nugent Sales 5 LBS Stock No Download
Reach out to sales@wwnugent.com for a quote
01-388-002 RA25 Cellulose 25 μm Nominal OUTSIDE - IN $46.73 2 LBS Stock No Download
01-388-003 RB25 Cellulose 25 μm Nominal OUTSIDE - IN $61.28 4 LBS Stock No Download

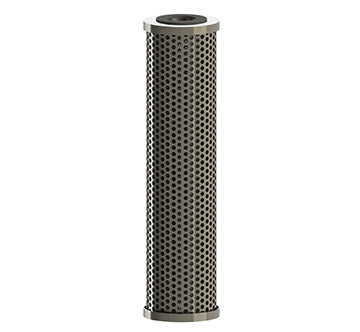

01-388-004 RB10 Cellulose 10 μm Nominal OUTSIDE - IN $61.43 4 LBS Stock No Download
01-388-005 RB5 Cellulose 5 μm Nominal OUTSIDE - IN Reach out to Nugent Sales 4 LBS Stock No Download
Reach out to sales@wwnugent.com for a quote
01-388-006 RA10 Cellulose 10 μm Nominal OUTSIDE - IN Reach out to Nugent Sales 2 LBS Stock No Download
Reach out to sales@wwnugent.com for a quote
01-388-007 RA5 Cellulose 5 μm Nominal OUTSIDE - IN $46.73 2 LBS Stock No Download
01-388-008 LD25 Cellulose 25 μm Nominal OUTSIDE - IN $52.01 5 LBS Stock No Download
01-388-009 LD5 Cellulose 5 μm Nominal OUTSIDE - IN $77.11 6 LBS Stock No Download

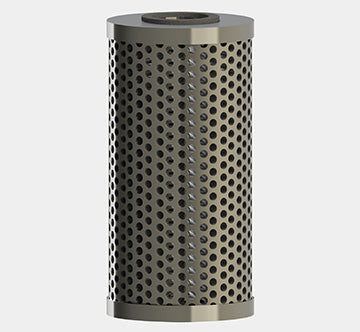

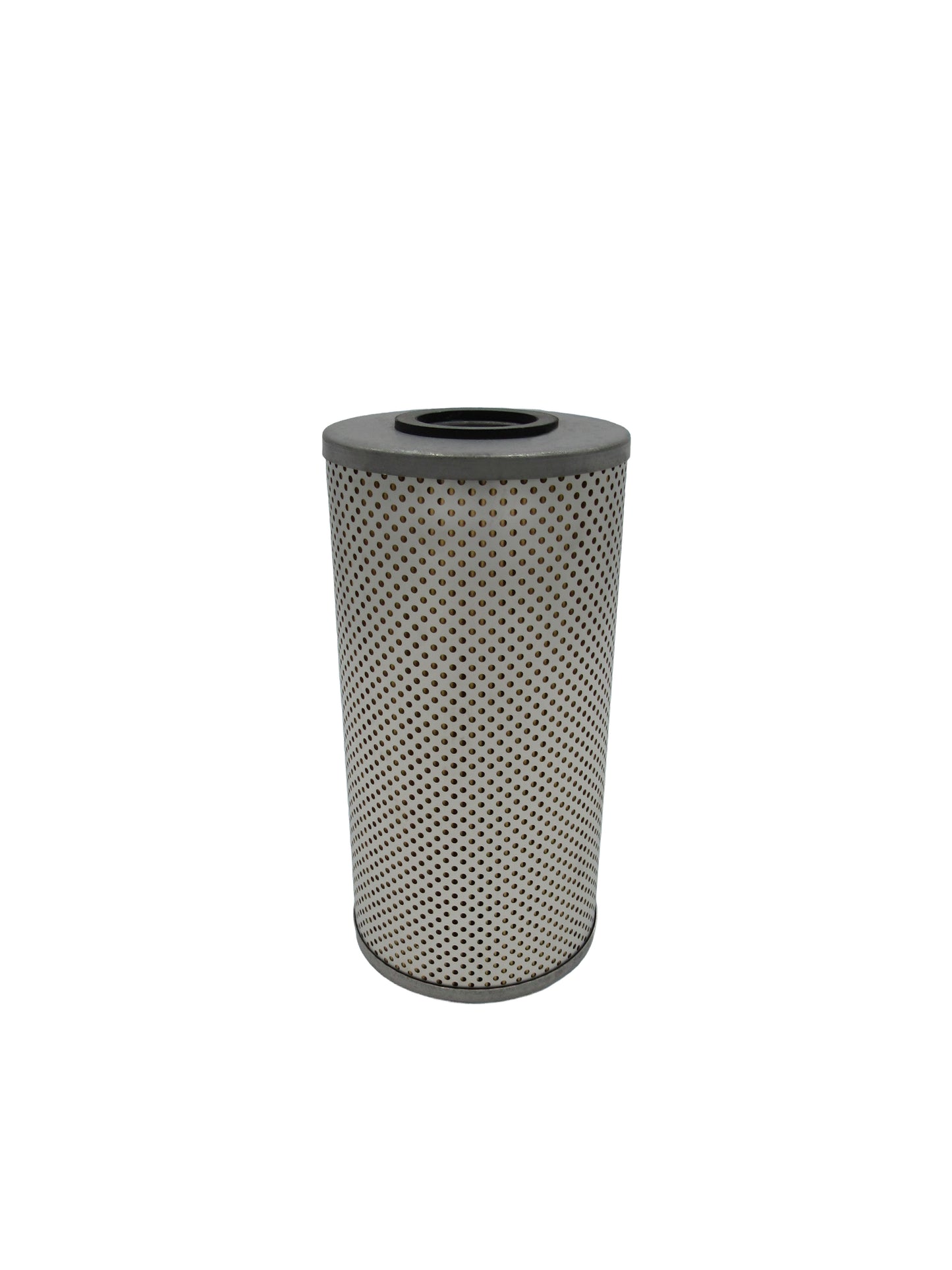

01-725-001 (Replaces VOID 30-400-204) PA3 Cellulose 5 μm Nominal OUTSIDE - IN $55.14 8 LBS Stock No Download

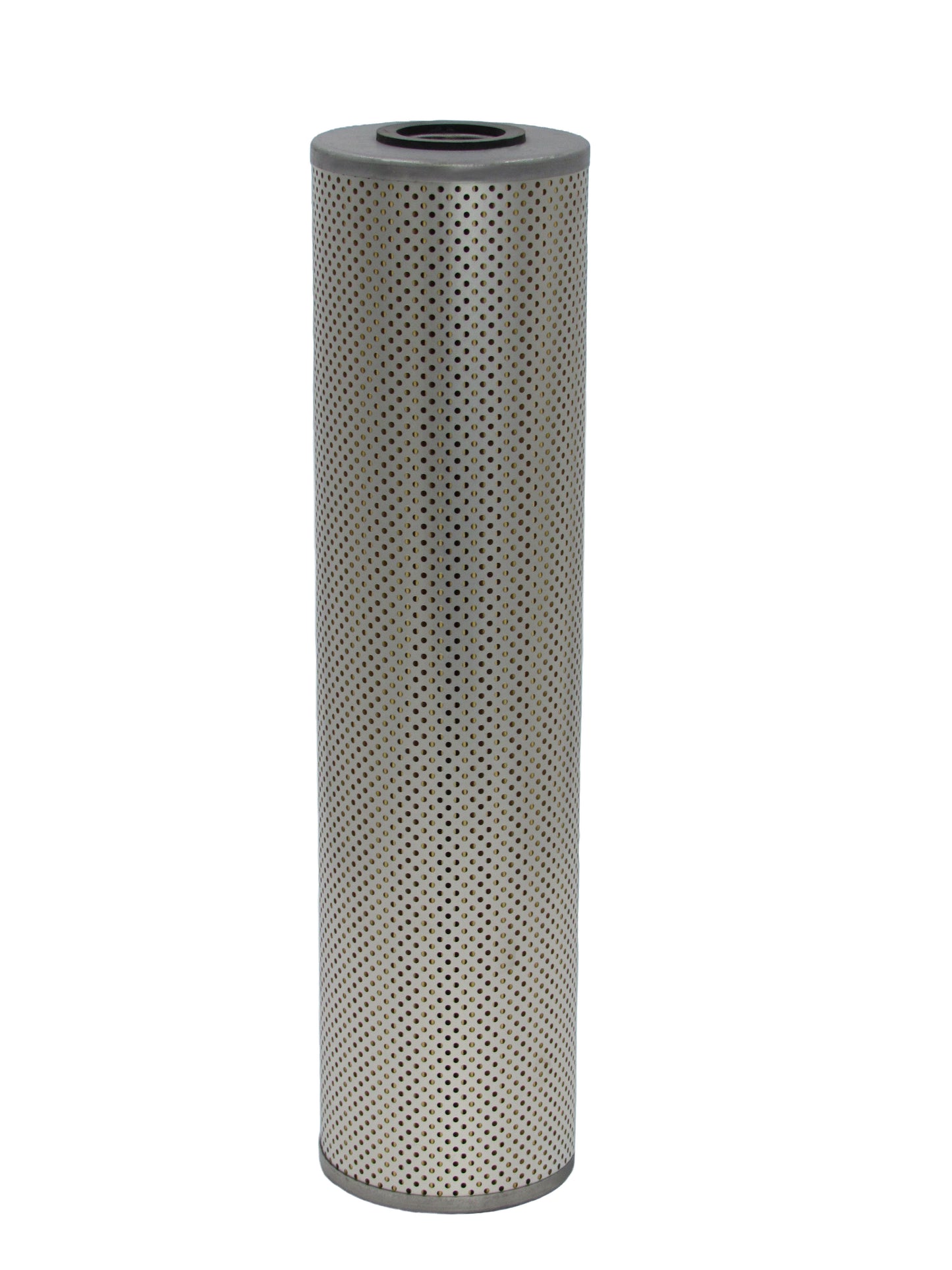

01-725-002 (REPLACES 30-400-205) PB3 Cellulose 5 μm Nominal OUTSIDE - IN $76.10 8 LBS Stock No Download
