With Indicators (Spring, Pin, Gate - SS Construction)

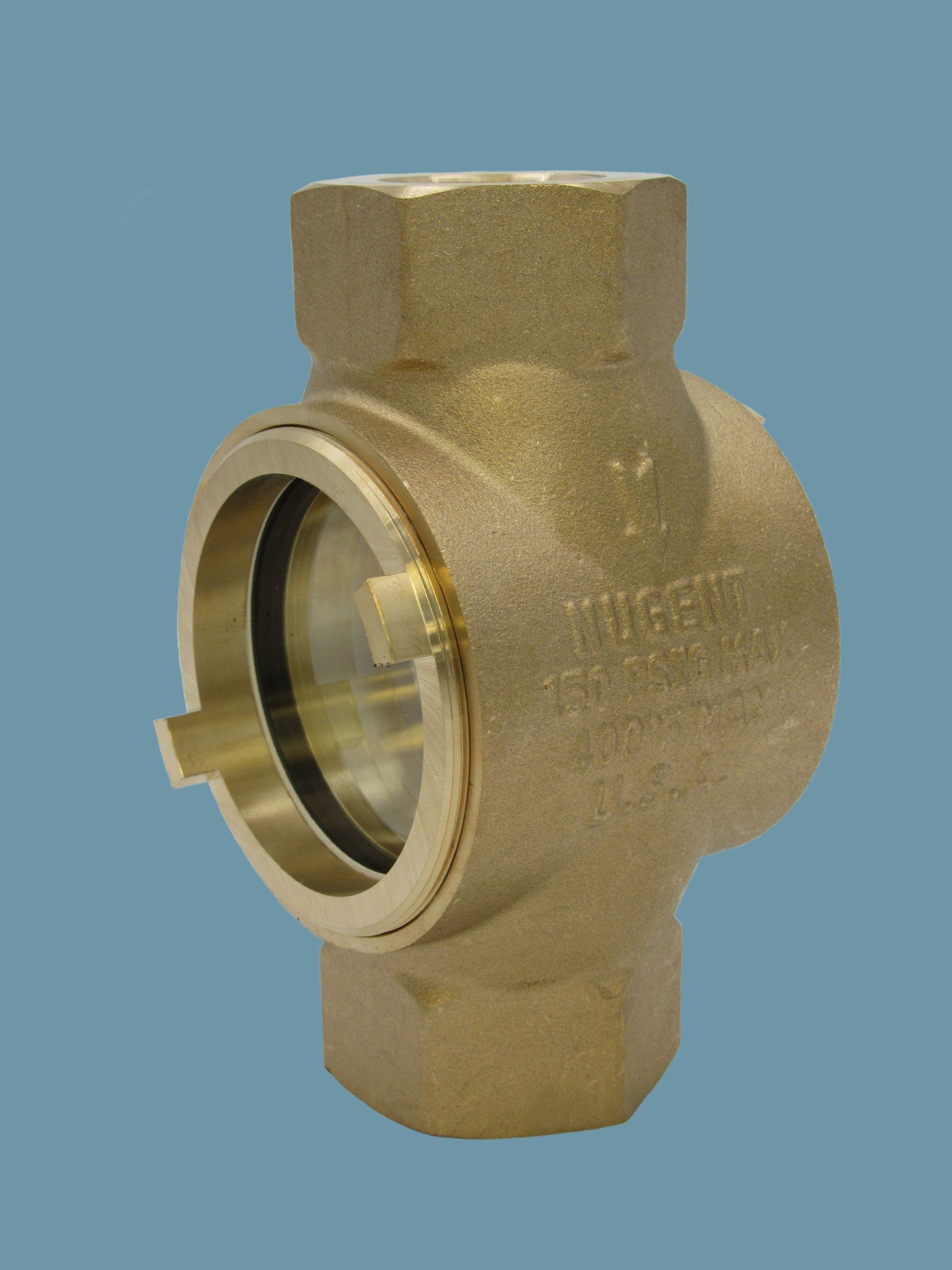

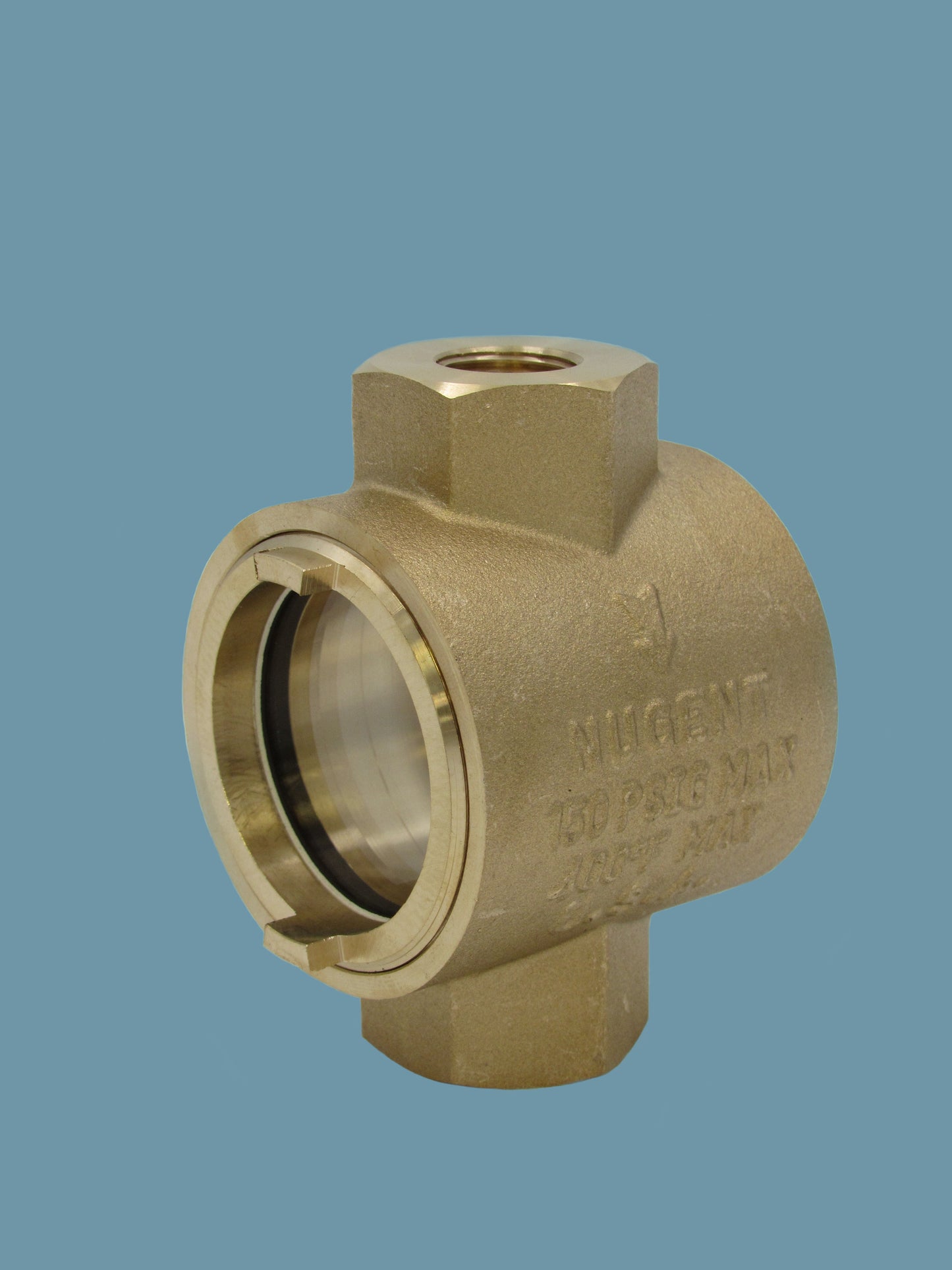

Nugent Liquid Sight Flow Indicators permit observation of flow and clarity of liquid through a pipe. Windows are both sides allow easy viewing. Two styles are available: Series 1366E and Series 1366G. 1366E has a stainless-steel spring-loaded indicator vane that moves in proportion to the flow. This style is especially suited for observing variations in flow rates. 1366G is supplied without the indicator vane. Available in brass and in sized from 3/8" to 2" NPT.

With Indicators (Spring, Pin, Gate - SS Construction)

With Indicators (Spring, Pin, Gate - SS Construction)

Nugent Liquid Sight Flow Indicators permit observation of flow and clarity of liquid through a pipe. Windows are both sides allow easy viewing. Two styles are available: Series 1366E and Series 1366G. 1366E has a stainless-steel spring-loaded indicator vane that moves in proportion to the flow. This style is especially suited for observing variations in flow rates. 1366G is supplied without the indicator vane. Available in brass and in sized from 3/8" to 2" NPT.

View full details
With Indicators (Spring, Pin, Gate - SS Construction) 57-103-202
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $148.58
With Indicators (Spring, Pin, Gate - SS Construction) 57-103-211
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $148.58
With Indicators (Spring, Pin, Gate - SS Construction) 57-104-202
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $165.61
With Indicators (Spring, Pin, Gate - SS Construction) 57-105-202
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $279.68
With Indicators (Spring, Pin, Gate - SS Construction) 57-105-211
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $279.68
With Indicators (Spring, Pin, Gate - SS Construction) 57-106-202
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $292.03
With Indicators (Spring, Pin, Gate - SS Construction) 57-107-202
With Indicators (Spring, Pin, Gate - SS Construction)
PRICE $298.18
Your cart
Part # Size Description MATERIAL Price Weight LEAD TIME Pdf Add to cart
57-103-202 3/8" NPT MAX 400 ºF. | 150 PSIG BRASS $148.58 2 LBS Stock Download
57-103-211 1/2" NPT MAX 400 ºF. | 150 PSIG BRASS $148.58 2 LBS Stock Download
57-104-202 3/4" NPT MAX 400 ºF. | 150 PSIG BRASS $165.61 2 LBS Stock Download
57-105-202 1" NPT MAX 400 ºF. | 150 PSIG BRASS $279.68 4.5 LBS Stock Download
57-105-211 1-1/4" NPT MAX 400 ºF. | 150 PSIG BRASS $279.68 4.5 LBS Stock Download
57-106-202 1-1/2" NPT MAX 400 ºF. | 150 PSIG BRASS $292.03 6 LBS Stock Download
57-107-202 2" NPT MAX 400 ºF. | 150 PSIG BRASS $298.18 10 LBS Stock Download
